Disc Mowers

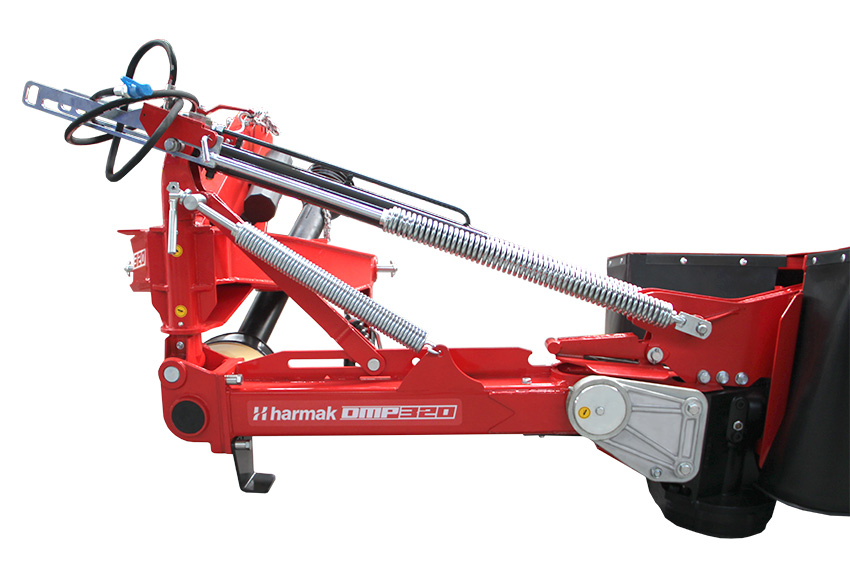

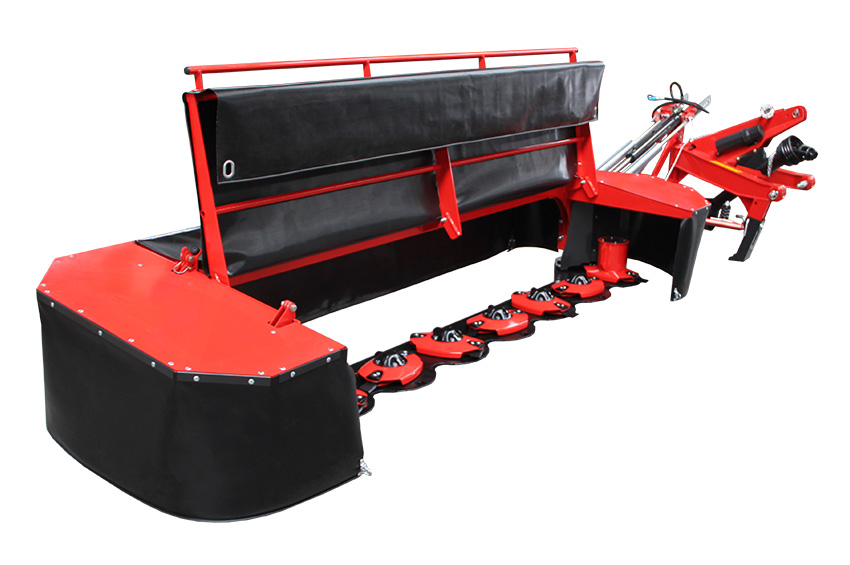

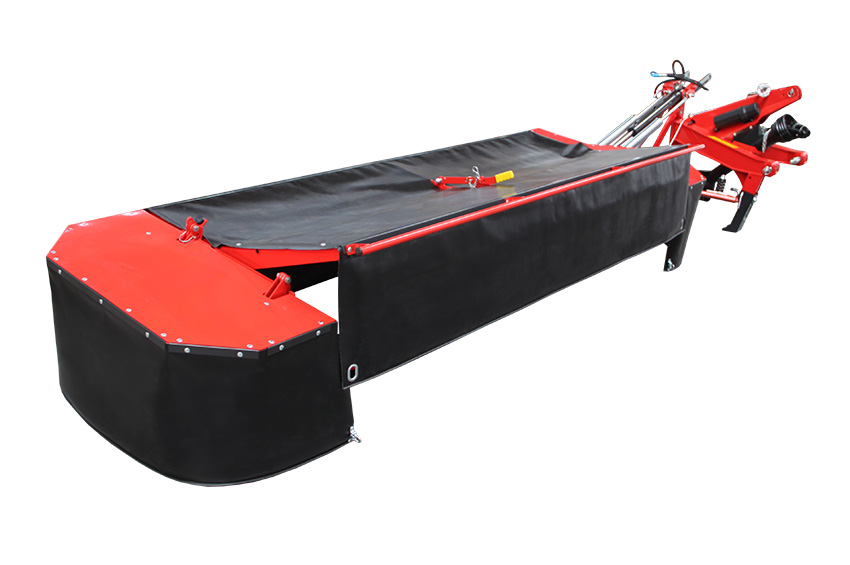

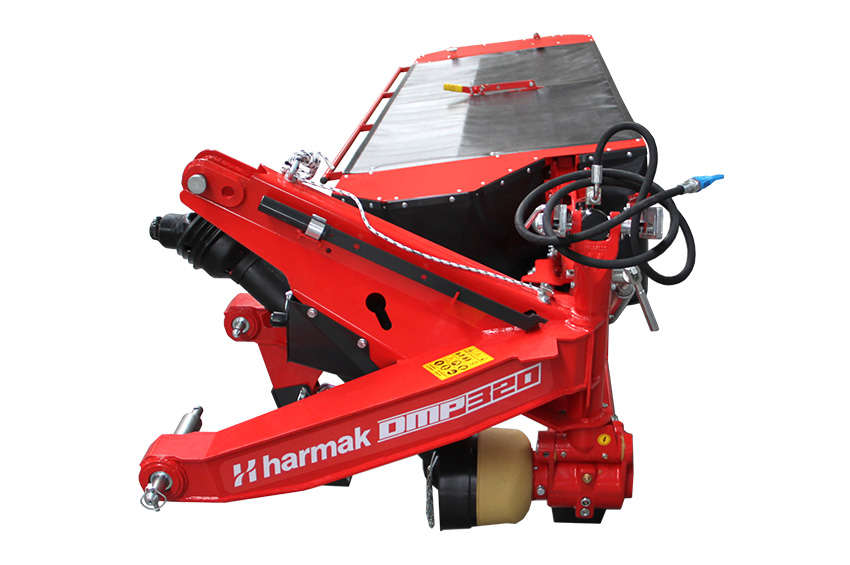

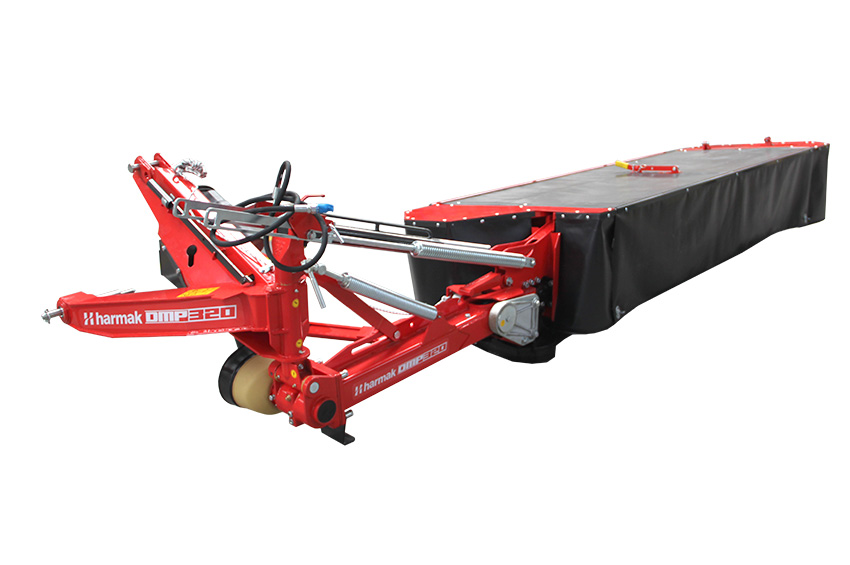

Cardan Drive Disc Mower
Photo Gallery
Technical Specifications
WEIGHT 550 Kg
WIDTH 4,4 m
HEIGHT 1 m
LENGTH 1,15 m
WORKING WIDTH 2,4 m
TRANSPORT WIDHT 1,66 m
TRANSPORT HEIGHT 3,1 m
POWER 65 hp
PTO SPEED 540 rpm
NUMBER OF DISC 6
NUMBER OF KNIFES 12
MOWING HEIGHT 3-8 cm
Featured Properties
ADJUSTABLE MOWING DIRECTION

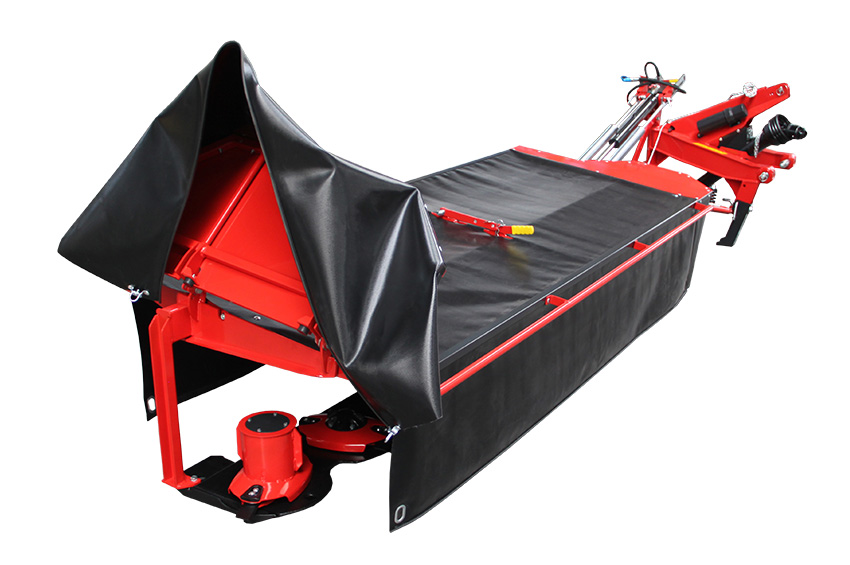

The rotation direction of the discs can be manually adjusted by the user. Disc covers can be easily removed, allowing any desired disc to operate in the preferred direction. This feature provides flexibility and ensures maximum efficiency in different field conditions.
ACTIVE DISC GUARDING SYSTEM
A special mechanism inside the discs ensures that when encountering obstacles like stones, a pin breaks, causing the mechanism to lift upwards. This prevents damage to the blades and allows the other blades to continue operating without interruption.
KNIFES CHANGE LEVER
A special lever located on the machine's chassis allows for easy blade replacement. By inserting the lever into the designated slot on the disc and lifting it, the blades are removed automatically. This system provides a quick and practical way to replace blades without unscrewing bolts.
PISTON LOCK VALVE
The piston lock valve is used to securely lock the piston after raising or lowering the cutting table. This system prevents unintended movements during operation, improving stability.
SAFETY SYSTEM
Machines are equiped with safety system to prevent disc and gearbox damages by foreign material (stone,rock etc.) in farm while moving direction.
HALF-LOCK MECHANISM
The half-lock mechanism, located between the chassis and the cutting table, is used to secure the cutting table in both a fully tilted position and an intermediate angle. This feature provides convenience and safety during maintenance and transportation.
