Disc Mowers
Trailed Conditioned Disc Mower
Photo Gallery
Technical Specifications
WEIGHT 2415 kg
WIDTH 3,7 m
HEIGHT 1,8 m
LENGTH 7,7 m
WORKING WIDTH 3,15 m
POWER 80 hp
PTO SPEED 540 rpm

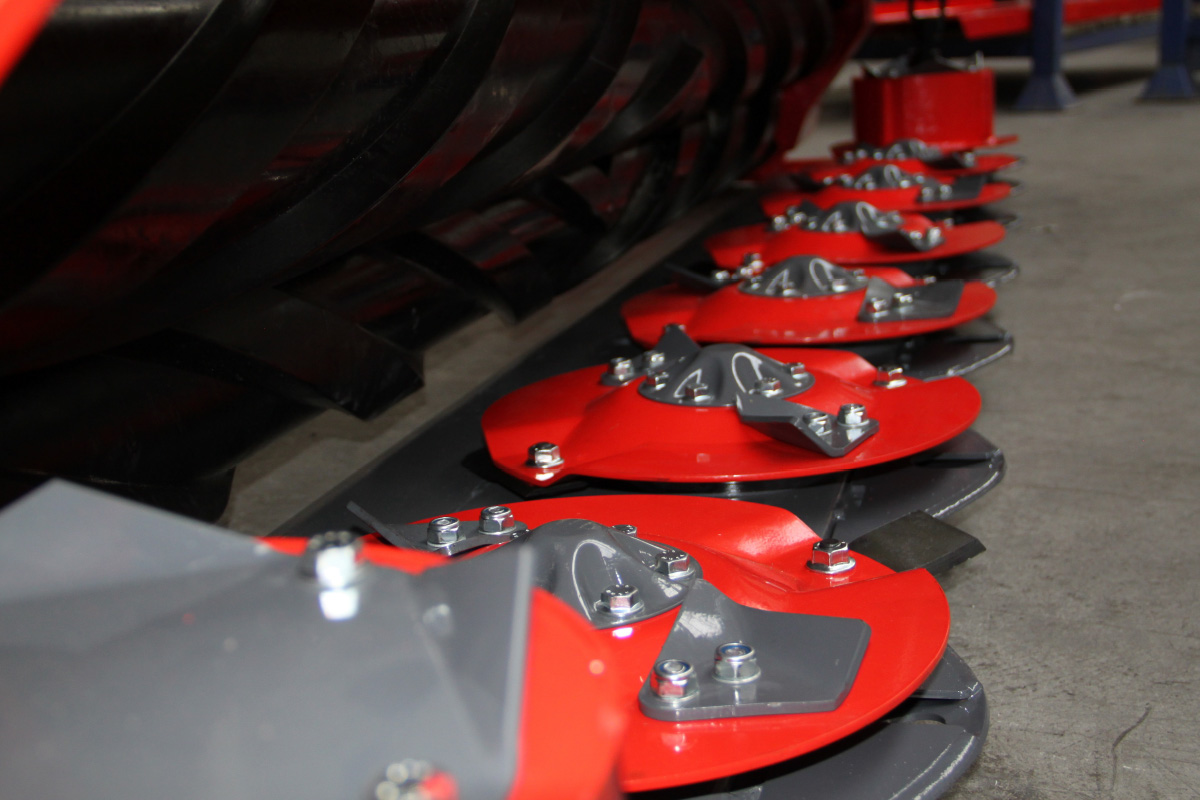

NUMBER OF DISC 8
NUMBER OF KNIFES 16
MOWING HEIGHT 2-8 cm
CONDITIONER TYPE Zik Zak Type
TIRE SIZE 340/55-16
Featured Properties
EXCELLENT MANEUVERABILITY
The special designed rotating head and draw beam in the model of DM-3150T-RC present great maneuverability in all kind of ground conditions.Further,cutting head can managed hydraulically so it provides big opportunity to turn over the edge of farm.

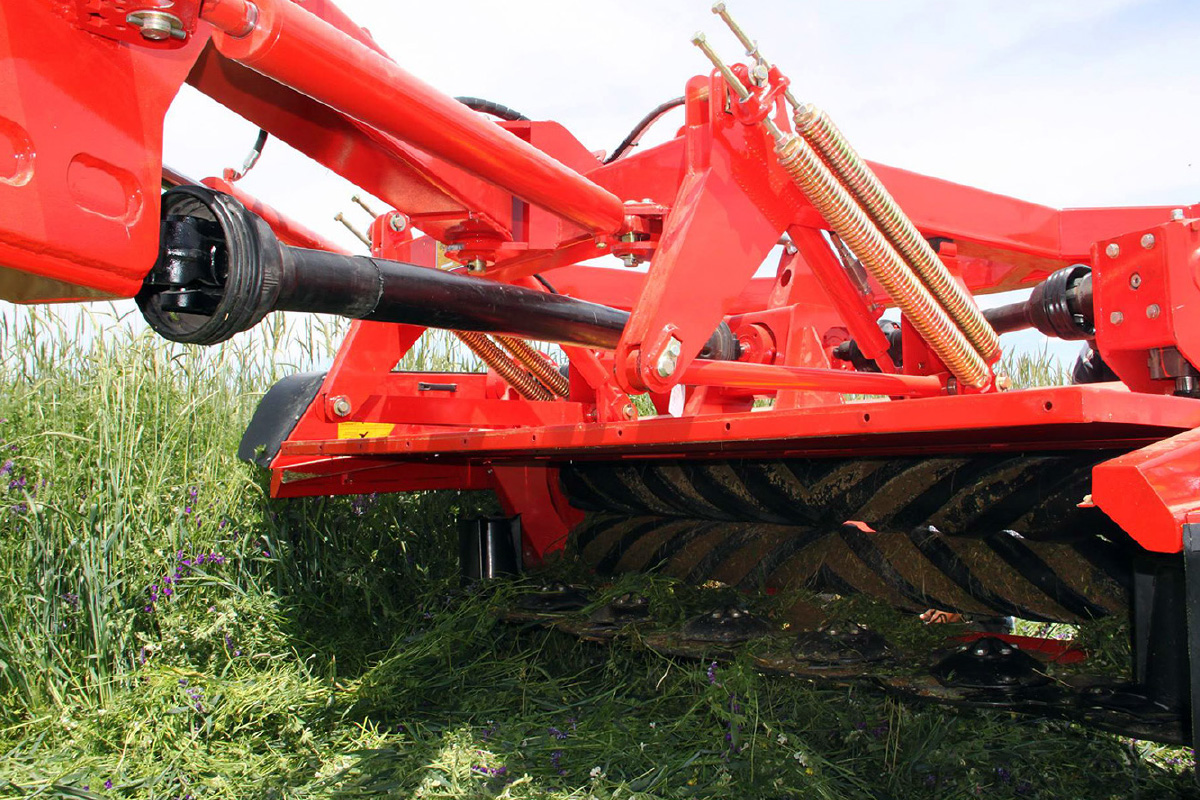

CONDITIONER
Zigzag patterned rubber roller is consisted in conditioner system.These rollers provide mown grass and leafs to dry simultaneously by creating a middle notch effect.It assures excellent conditioning because of the special gearbox system is bonded on the two rollers in conditioner.
SUSPENSION SYSTEMS
Suspension systems provide mowing head to behave according to terrain conditions and also accurate adaptations of the ground.
WORKING ABILITY OF TRACTORS BOTH SIDES
The machine can be work both sides of tractor as right and left sides by controller of hydraulic system in DM-3150T-RC model.
