Hay Rakes

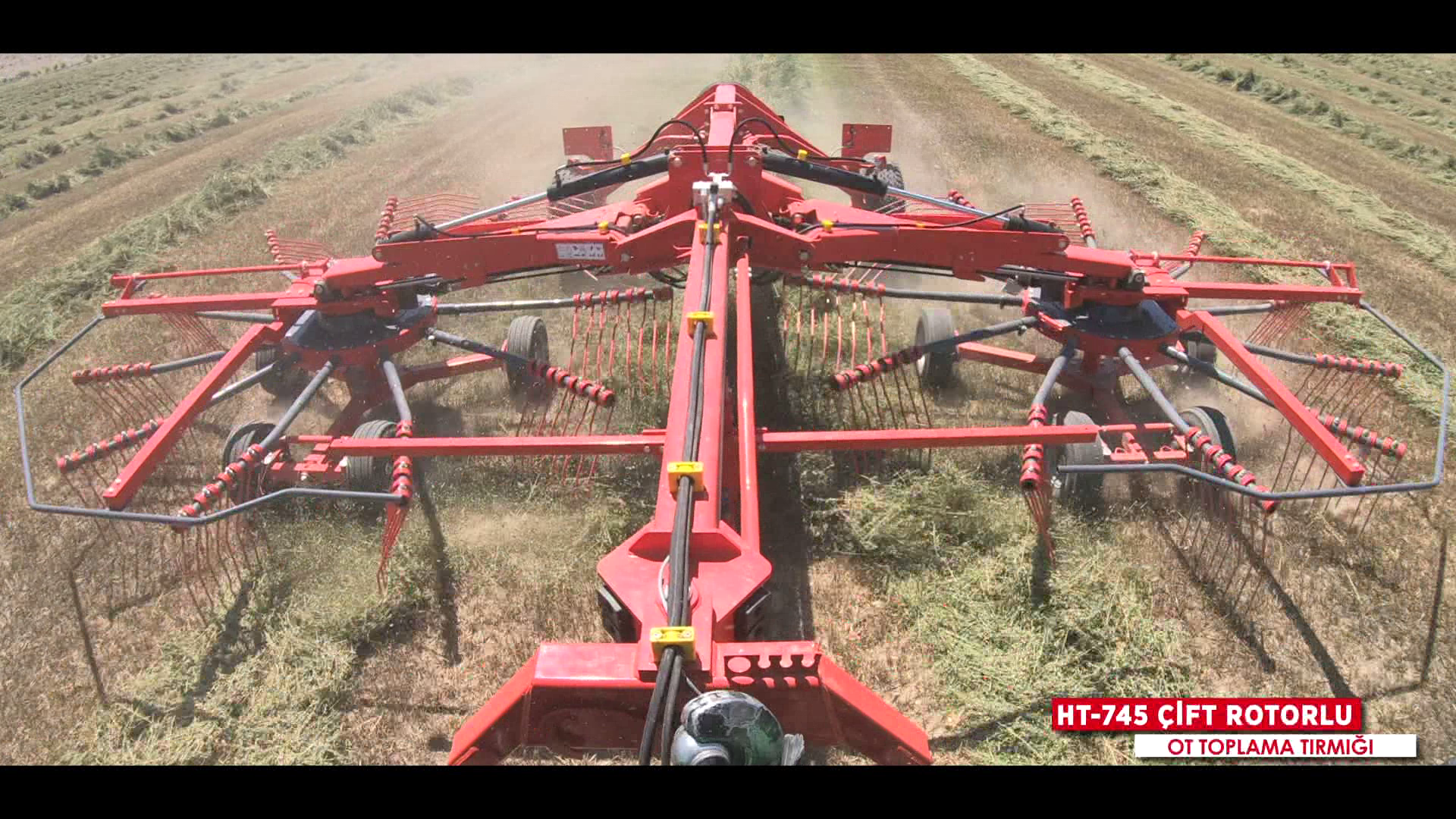

Double Rotary Rakes
Photo Gallery
Technical Specifications
WEIGHT 2160 kg
WIDTH 2,5 m
HEIGHT 3,8 m
LENGTH 5,32 m
WORKING WIDTH 6,85 - 7,35 m
POWER 60-80 hp
PTO SPEED 540 rpm
SWATH WIDTH 1,25 - 1,75 m
NUMBER OF ROTORIES 2
NUMBERS OF ROTOR ARM 11x2
NUMBER OF SPRING ARM 4
COLLECTION TYPE Central Collection
TIRE SIZE 340/55-8
(ROTOR) TIRE SIZE 16.5/6.5-8
Featured Properties
ADJUSTABLE OPTIMAL WORKING WIDTH
Collectıng width can be adjusted by hydraulic systes as automatically.
EXCELLENT ADAPTATION TO TERRAINS
The wheels under the rotories provide perfect adaptations and excellent collection in even short ,heavy and wet grass in uneven and slope terrain conditions.
EASY TO TRANSPORT
The wings automatically come to an upright position thanks to hydraulic system so it exhibits smooth transportation .It is suitable for bridges standards due to the height which is less than 4 meter in vertical position.Collecting arms of rake has the feature of assembling and disassembling.
EASY DISASSEMBLING OF ROTOR ARM
Just undo three bolts to disasseble rotor arm and rotor casing easy and guick.So that rotor and rotor arm maintenance can be effortless.
HEIGHT ADJUSTMENT OF ROTOR
Depending on crop and terrain, rotor height can adjust easy and comfy as well.
