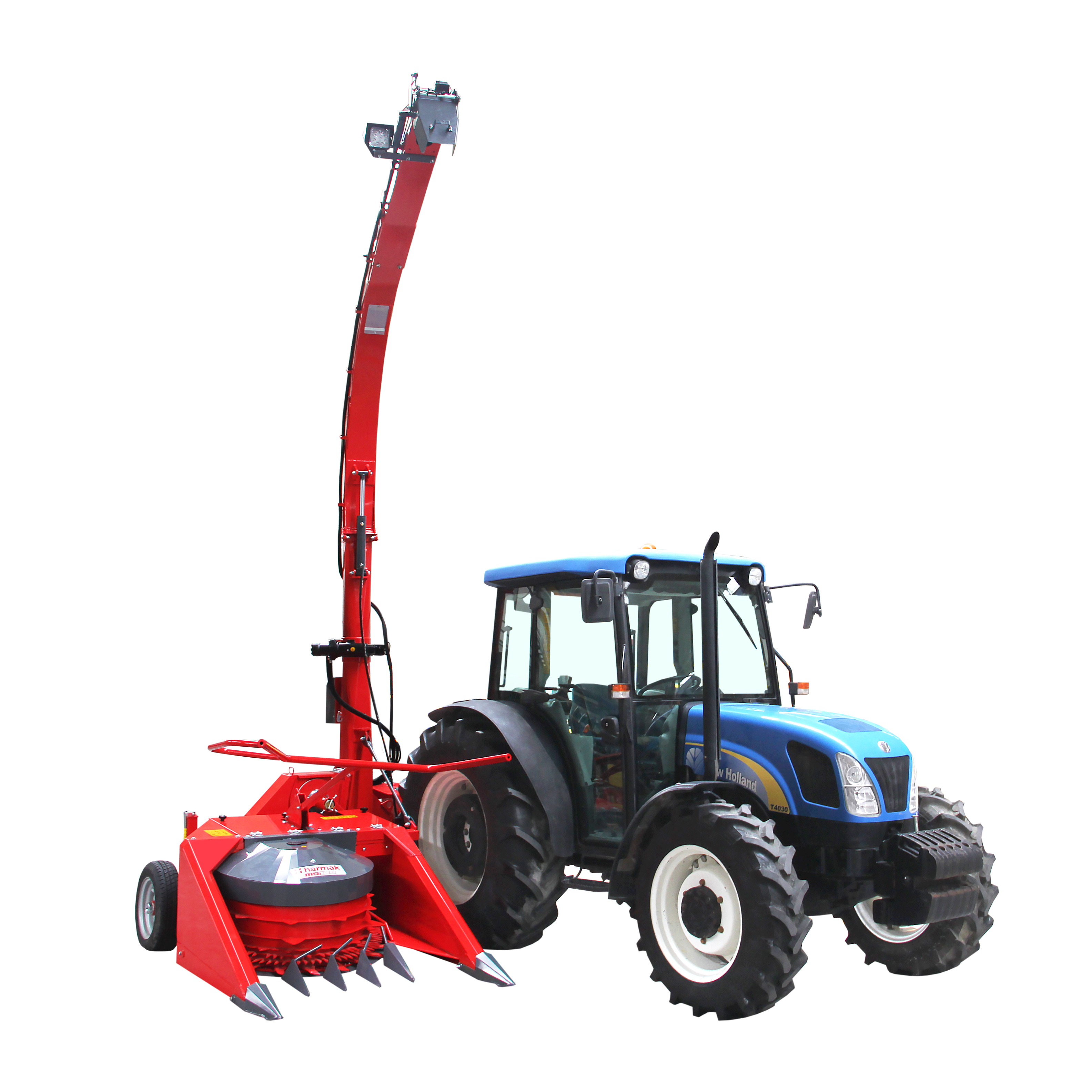

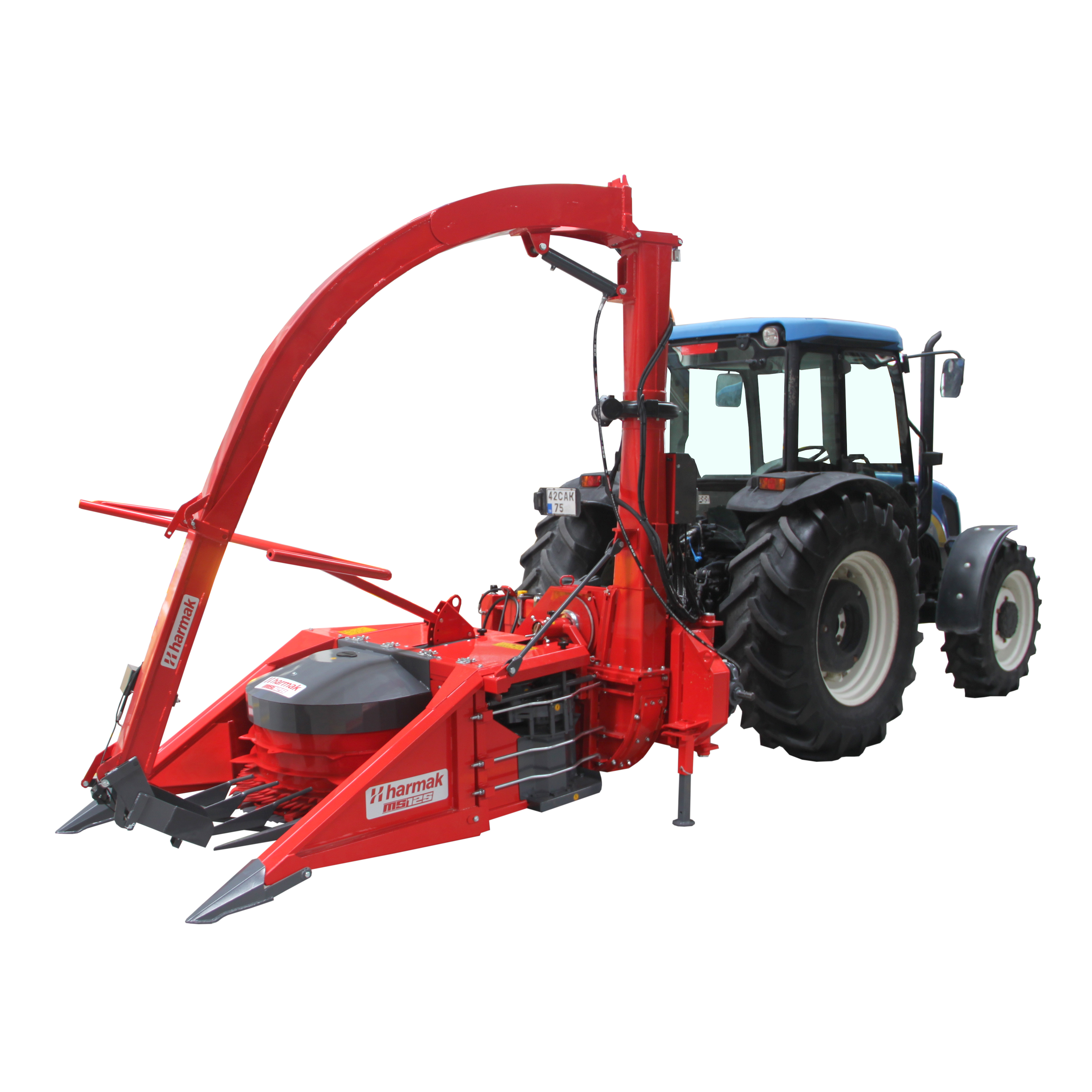

Maize Chopper Machine
Row Independent Maize Chopper
Photo Gallery
Technical Specifications
WEIGHT 1420 kg
WIDTH 2,8 m
HEIGHT 4,1 m
LENGTH 2,85 m
WORKING WIDTH 1,25 m
TRANSPORT HEIGHT 2,44 m
POWER 75-100 hp
PTO SPEED

540 rpm

(1000 / 750 optionel)

NUMBER OF ROWS 2
NUMBER OF FLAPPING PALET 12
NUMBER OF SHREEDER KNIVES 12
SHREDDING SIZE 4 - 10 mm
WORKING POSITION Front / Back / Side
TIRE SIZE 165*70*13
PRODUCTION (TONNE / HOUR) 40/50 ton
Featured Properties
3 POINT HANGER SYSTEM
The machine can be connected to the tractor at 3 hanging points and can be formed quickly in the side and rear position of the tractor. It also contributes to fuel saving with its ability to work at low horsepower.
FOLDABLE CHASSIS
Harmak MS-125 Corn silage machine has a working capacity of 125 cm and can cut two rows at the same time with the help of cutter and feeder drums.With its foldable chassis feature, it provides use in the field without opening problems, product crushing and turning maneuver.
STRONG BLADES
Thanks to 12 reinforced and hardened blades on the machine, it provides fast and efficient shredding. Thanks to the hydraulic cylinder located in the chimney section, it is possible to discharge the product in the desired direction very easily.
GRINDING WHEEL
Harmak MS 125 is equipped with a grinding wheel inside the stand-alone maize silage machine for fast and smooth sharpening of your blades.
360 ROTARY HYDROMOTOR
Harmak MS-125 row independent maize silage chopper machine can optionally be fitted with a 360° rotary hydromotor chimney system. Thanks to this system, the cutted product can be transferred to the desired side according to the trailer’s position.
